Product Summary

The BCM5320MIPBG is a single-chip L2+ managed switch with 24 10/100 ports + 2 GbE ports.

Parametrics

BCM5320MIPBG benefits: (1)Advanced Cable Diagnostics minimize the need for expensive cable troubleshooting equipment; (2)Enables a new generation of lower cost FE switches with the highest integration of enhanced L2+ features and maximum connectivity; (3)Optimized for WebSmart managed switch design; (4)802.1Q VLAN allows segmentation of network into smaller broadcast domains to preserve bandwidth and increase network security; (5)Four flexible Class of Service (CoS) queues per port assures the lowest latency to high-priority traffic. This enables the switch to support a wide variety of delay sensitive video and audio multicast applications; (6)IEEE 802.3ad link aggregation increases effective bandwidth and provides redundancy of a link; (7)IEEE 802.1X Extensive Authentication Protocol over LAN (EAPOL) plus MAC address locking enhances network port security.

Features

BCM5320MIPBG features: (1)Seventh-generation ROBO L2+ 24FE + 2GE switch with two GMII/RGMII/TBI interfaces; (2)Twenty-four fully integrated 10/100 PHYs with support of Advanced Cable Diagnostics in the Broadcom PHY technology; (3)QoS packet classification supports four priority queues; (4)Port-based VLAN and 802.1Q VLAN with 4k entries; (5)Supports traffic aggregation via double tagging; (6)Spanning Tree (IEEE 802.1D/1s/1w); (7)MAC-based trunking with automatic link failover; (8)Port mirroring; (9)IGMP snooping Layer2/3; (10)Over 70 MIB counters for per port management statistics; (11)Up to 24 Static Secure MAC addresses per port.

Diagrams

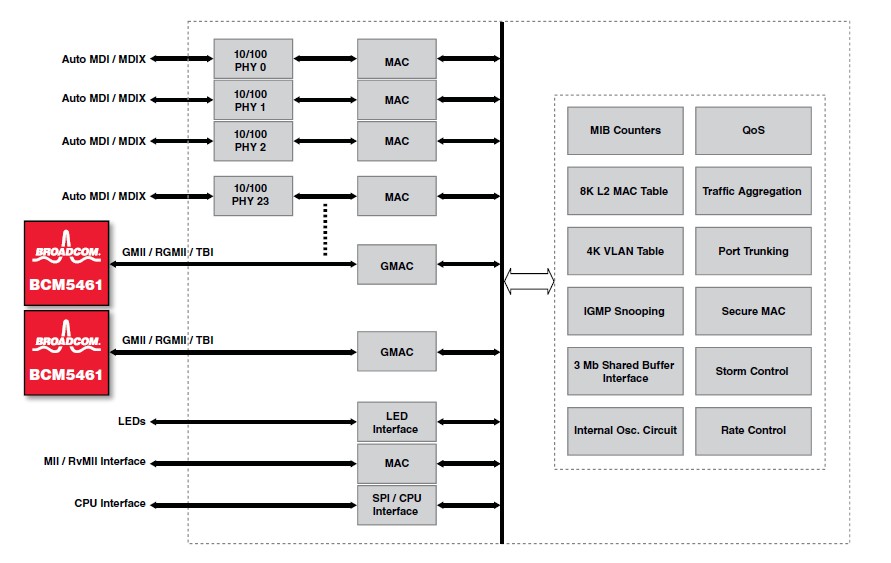

BCM5320MIPBG block diagram
