Product Summary

The M30262F8GP#U3 is a single-chip microcomputer which is built using the high-performance silicon gate CMOS process and is packaged in a 48-pin plastic molded QFP. The single-chip microcomputer operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, the M30262F8GP#U3 is capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes the M30262F8GP#U3 suitable for control of various OA, communication, and industrial equipment which requires high-speed arithmetic/logic operations. The applications of the M30262F8GP#U3 are: Audio, cameras, office/communications/portable/industrial equipment, etc.

Parametrics

M30262F8GP#U3 absolute maximum ratings: (1)Supply voltage: -0.3 to 6.5V; (2)Analog supply voltage: -0.3 to 6.5V; (3)Power dissipation: 300mW; (4)Operating ambient temperature: -20 to 85℃; (5)Storage temperature: -65 to 150℃.

Features

M30262F8GP#U3 features: (1)LOW output voltage: 0.5V; (2)Pull-up resistance: 50 to 500kΩ; (3)RAM retention voltage: 2.0V.

Diagrams

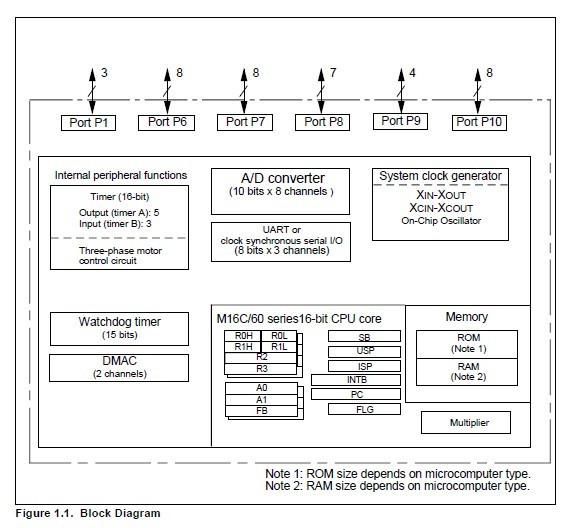

M30262F8GP#U3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M30262F8GP#U3
M30262F8GP#U3


IC M16C/TINY MCU FLASH 48LQFP

Data Sheet

0-1: $7.04
