Product Summary

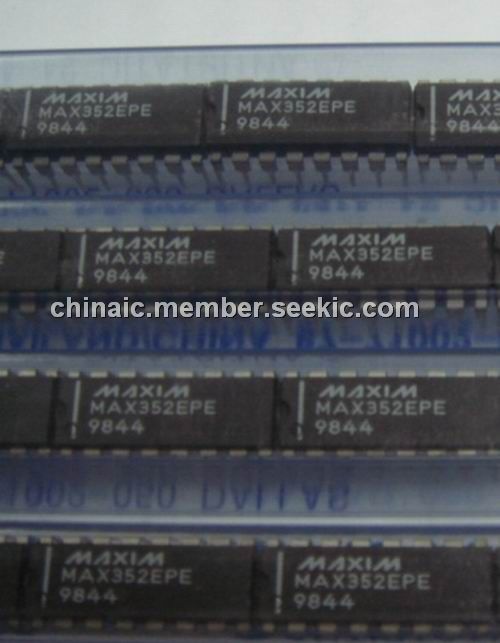

The MAX352EPE is a precision, quad, single-pole single-throw (SPST) analog switch. The MAX352EPE offers low on resistance (less than 35Ω), guaranteed to match within 2Ω between channels and to remain flat over the analog signal range (Δ3Ω max). The MAX352EPE also offers low leakage (less than 250pA at +25℃ and less than 6nA at +85℃) and fast switching (turn-on time less than 175ns and turn-off time less than 145ns). The applications of the MAX352EPE are Sample-and-Hold Circuits, Military Radios, Guidance and Control Systems, Communications Systems, Heads-Up Displays, Battery-Operated Systems, Test Equipment, PBX, PABX.
Parametrics
MAX352EPE absolute maximum ratings: (1)Voltage Referenced to V-: V+:44V, GND:25V, VL:(GND - 0.3V) to (V+ + 0.3V); (2)Digital Inputs, VCOM, VNC, VNO:(V- - 2V) to (V+ + 2V) or 30mA(whichever occurs first) Current (any terminal):30mA; (3)Peak Current COM_, NO_, NC_(pulsed at 1ms, 10% duty cycle max):100mA; (4)ESD per Method 3015.7:>2000V; (5)Operating Temperature Ranges:-55℃ to +125℃; (6)Storage Temperature Range:-65℃ to +150℃; (7)Lead Temperature (soldering, 10sec):+300℃.
Features
MAX352EPE features: (1)Low On Resistance < 22Ω Typical (35Ω Max); (2)Guaranteed Matched On Resistance Between Channels < 2Ω; (3)Guaranteed Flat On Resistance Over Analog Signal Range Δ3Ω Max; (4)Guaranteed Charge Injection < 10pC; (5)Guaranteed Off-Channel Leakage < 6nA at +85℃; (6)ESD Guaranteed > 2000V per Method 3015.7; (7)Single-Supply Operation (+10V to +30V); (8)Bipolar-Supply Operation (±4.5V to ±20V); (9)TTL-/CMOS-Logic Compatibility; (10)Rail-to-Rail Analog Signal Handling Capability.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX352EPE |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
|||||||||||||
