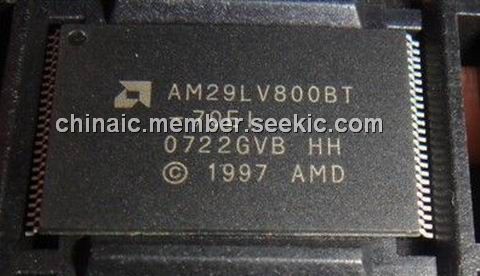

AM29LV800BT-70EI

8 Megabit (1 M x 8-Bit/512 K x 16-Bit), CMOS 3.0 Volt-only, Boot Sector Flash Memory, TSOP48

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.40~4.52 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.40~4.52

PartNumber:: AM29LV800BT-70EI

Brand:: Advanced Micro Devices - AMD | Pack: TSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Frank's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-30

From Other Seller

Part Number:AM29LV800BT-70EI
US $4.40 - 4.52
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AM29LV800BT-70EI is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The AM29LV800BT-70EI is also available in Known Good Die (KGD) form. For more information, refer to publication number 21536. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The AM29LV800BT-70EI requires only a single, 3.0 volt VCC supply to perform read, program, and erase operations. A standard EPROM programmer can also be used to program and erase the device.

Parametrics

AM29LV800BT-70EI absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –0.5 V to +4.0 V; A9, OE#, and RESET#: –0.5 V to +12.5 V; All other pins: –0.5 V to VCC+0.5 V.

Features

AM29LV800BT-70EI features: (1)Single power supply operation: 2.7 to 3.6 volt read and write operations for battery-powered applications; (2)Manufactured on 0.32 μm process technology: Compatible with 0.5 μm Am29LV800 device; (3)High performance: Access times as fast as 70 ns; (4)Ultra low power consumption (typical values at 5 MHz): 200 nA Automatic Sleep mode current; 200 nA standby mode current; 7 mA read current; 15 mA program/e+5rase current; (5)Flexible sector architecture: One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and fifteen 64 Kbyte sectors (byte mode); One 8 Kword, two 4 Kword, one 16 Kword, and fifteen 32 Kword sectors (word mode); Supports full chip erase; Sector Protection features: A hardware method of locking a sector to prevent any program or erase operations within that sector Sectors can be locked in-system or via programming equipment Temporary Sector Unprotect feature allows code changes in previously locked sectors; (6)Unlock Bypass Program Command: Reduces overall programming time when issuing multiple program command sequences; (7)Top or bottom boot block configurations available.
