Product Summary

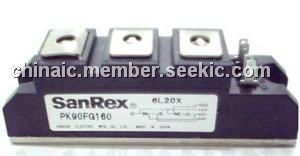

The PK90F80 is a Power Thyristor/Diode Module. It is designed for various rectifier circuits and power controls. For your circuit application. following internal connections and wide voltage ratings up to 1,600V are available. High precision 25mm (1inch) width package and electrically isolated mounting base make your mechanical design easy. The applications of the PK90F80 are Various rectifiers, AC/DC motor drives, Heater controls, Light dimmers, Static switches.
Parametrics
PK90F80 absolute maximum ratings: (1)repetitive peak reverse voltage:800V; (2)non-repetitive reverse voltage:960V; (3)repetitive peak off-state voltage:800V; (4)average on-state current:90A; (5)RMS on-state current:140A; (6)Peak Gate Power Dissipation:10W; (7)Average Gate Power Dissipation:3W; (8)Peak Gate Current:3A; (9)Peak Gate Voltage (Forward):10V; (10)Peak Gate Voltage (Reverse):5V; (11)Critical Rate of Rise of On-State Current:200A/us; (12)solation Breakdown Voltage (R.M.S.):2500V; (13)operating junction temperature:-40 to +125℃; (14)storage temperature:-40 to +125℃.
Features
PK90F80 features: (1)IT(AV) 90A, IT(RMS) 140A, ITSM 2300A; (2)di/dt 200 A/μs; (3)dv/dt 500V/μs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PK90F80 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
