Product Summary

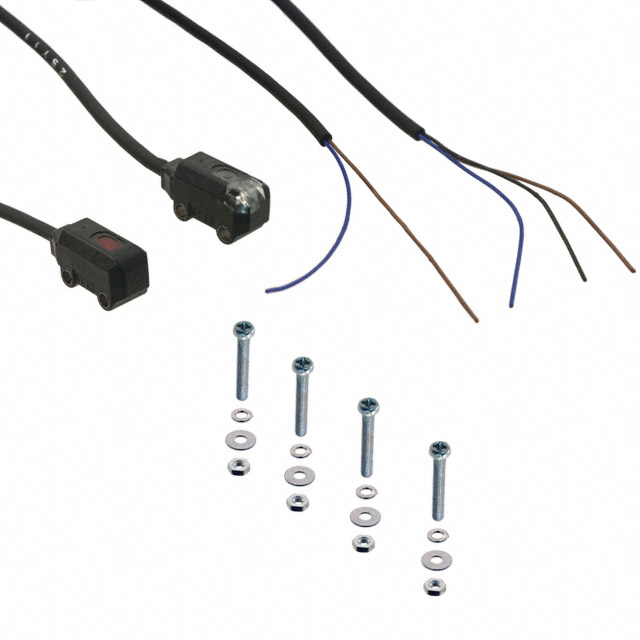

The E3T-ST12 is a Photoelectric Sensor with Built-in Amplifier.

Parametrics

E3T-ST12 general specifications: (1)Sensing Distance:39.370” (1m); (2)Sensing Method:Through-Beam; (3)Output Configuration:NPN - Open Collector/Dark-ON; (4)Mounting Type:Bracket Mount; (5)Current - Supply:30mA; (6)Voltage - Supply:12 V to 24 V; (7)Package / Case:Module, Pre-Wired; (8)Lead Free Status:Contains Lead; (9)RoHS Status:RoHS Compliant by Exemption.

Features

E3T-ST12 features: (1)Coaxial Retro-reflective for reliable positioning applications; (2)Series now includes BGS* reflective model with black/white error of 15%; (3)Easy optical axis adjustment with emitter axis accuracy of ±2°(Through-beam Model); (4)Noise and external light resistance enhanced to that of E3Z or equivalent; (5)Output reverse polarity protection provides reliable support against incorrect wiring; (6)The Series includes models with M12 Smartclick pre-wired connectors (-M1TJ).

Diagrams

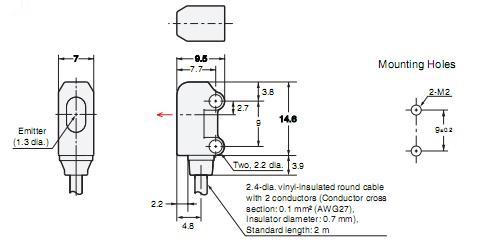

E3T-ST12 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E3T-ST12
E3T-ST12

Omron Industrial

Photoelectric Sensors NPN THRU BEAM

Data Sheet

0-1: $64.73
1-5: $63.22
5-10: $60.68
10-25: $57.32
E3T-ST12 5M
E3T-ST12 5M

Omron Industrial

Photoelectric Sensors 1M T-BEAM D/ON NPN 5M

Data Sheet

0-1: $88.29
1-5: $82.48
5-10: $79.87
10-20: $78.41
E3T-ST12R
E3T-ST12R

Omron Industrial

Photoelectric Sensors SIDE T-B NPN D.O. ROBOTIC

Data Sheet

0-1: $84.76
1-5: $79.18
5-10: $76.67
10-20: $75.28
E3T-ST12-D
E3T-ST12-D


RECEIVER ONLY, SIDE MOUNT 2M C

Data Sheet

0-1: $66.36
E3T-ST12M
E3T-ST12M


1M T-BEAM D/ON NPN M3 MTG

Data Sheet

0-1: $142.20
E3T-ST12-M1TJ 0.3M
E3T-ST12-M1TJ 0.3M


SENSOR PHOTOELECTRIC 0.3M NPN

Data Sheet

0-1: $134.38
E3T-ST12-U1
E3T-ST12-U1

Omron Industrial

Photoelectric Sensors DATACARD P/N 55 1057-001

Data Sheet

0-1: $217.30
1-5: $203.01
5-10: $196.57
10-20: $193.00
E3T-ST12-U1R
E3T-ST12-U1R


SENSOR PHOTOELECTRIC

Data Sheet

0-1: $236.23
