Product Summary

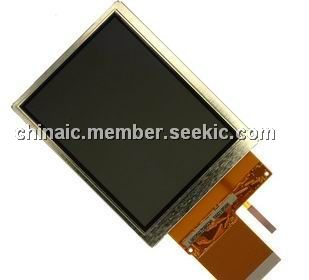

The LQ036Q1DA01 is a color active matrix LCD module incorporating amorphous silicon TFT. It is composed of a color TFT-LCD panel, driver ICs, an FPC, a back light, a front sealed casing and a back sealed casing. The LQ036Q1DA01 isn’t composed control circuit. Graphics and tesxts can be displayed on a 320*3*240 dots panel with 262144 colors by supplying.
Parametrics
LQ036Q1DA01 absolute maximum ratings: (1)power supply:-0.3V to +7.0V; (2)power supply(gate):-0.3V to +35.0V; (3)input voltage(analog):-0.3V to VSHA+0.3V; (4)input voltage(digital):-0.3V to VSHD+0.3V; (5)operating temperature:-10 to 60℃; (6)storage temperature:-20 to 70℃.
Features
LQ036Q1DA01 features: (1)supply voltage for source driver(analog):+4.5V to +5.5V; (2)supply voltage for source driver(digital):+2.7V to +3.6V; (3)input current for source driver(low):30uA; (4)input current for source driver(hight):30uA or 1200uA.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ036Q1DA01 |
Sharp Microelectronics |
TFT Displays & Accessories 3.6" TFT QVGA Landscape 320x240 |
Data Sheet |
Negotiable |
|
||||||
