Product Summary
The 1-794629-0 is an AMP soft shell pin and socket connector. The 1-794629-0 provides a highly reliable and economic means of grouping multiple-lead connections in todays computer, computer/ peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment. The 1-794629-0 is an integral component in these applications. The 1-794629-0 also offers worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space.The 1-794629-0 offers the design and features to answer these modern industry requirements.
Parametrics
1-794629-0 absolute maximum ratings: (1)Voltage Rating: 50 VAC/DC; (2)Current Rating: 3 A; (3)Overall Resistance: 10 mΩ max. (initial); 20 mΩ max. (final); (4)Insulation Resistance: 500 Ω (500 VDC); (5)Dielectric Withstanding Voltage: 1,100 VAC, one minute; (6)Contact Resistance: 20 mΩ max.; (7)Operating Temperature: -30℃~ + 105℃ (The upper limit includes temperature rise from power carrying).
Features
1-794629-0 features: (1)Connector for signal circuits with one row of contacts on 2.5 mm centerline; (2)Wire-to-board and wire-towire connectors, consisting of plug and cap housings for wire termination and PC board-mount post headers; (3)Mounted to plug and cap housings for wire application, double lock plate provides for positive loading of contacts in the housing. It also helps contacts mate completely; (4)Double lock plate is contained within the plug and cap housing completely, which provides neat overall appearance; (5)Accepts 26-20 AWG wire (e.g. UL 1007, 1061, 1571, etc.) with insulation diameters of up to 1.8 mm; (6)PC board-mount post header is available in two styles: standard profile and high profile.

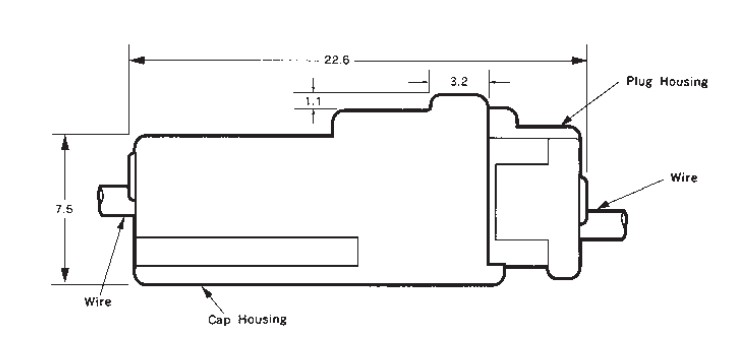

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

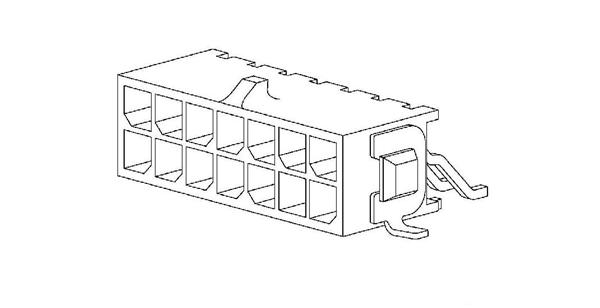

 1-794629-0 |
TE Connectivity / AMP |
Pin & Socket Connectors HDR ASSY 10P 30 AU R/A SMT |
Data Sheet |
|
|
||||||||||||
