Product Summary
The MAX4138EWG is a 1-input/4-output voltage-feedback amplifier that combines high speed with fast switching for video distribution applications. The MAX4138EWG delivers a 1000V/us slew rate, as well as exceptional full-power bandwidths of 185MHz and 140MHz, respectively. The applications of the MAX4138EWG are Video Switching and Distribution, High-Resolution RGB CRT Monitors, High-Speed Analog Bus Drivers, RF Signal Processing, Composite Video Preamplifiers.
Parametrics
MAX4138EWG absolute maximum ratings: (1)Power-Supply Voltage (VCC to VEE):12V; (2)Voltage on Any Input Pin to GND:(VCC + 0.3V) to (VEE - 0.3V); (3)Short-Circuit Duration to GND:Continuous; (4)Continuous Power Dissipation:1.54W; (5)Operating Temperature Range:-40℃ to +85℃; (6)Storage Temperature Range:-65℃ to +160℃; (7)Lead Temperature (soldering, 10sec):+300℃.
Features
MAX4138EWG features: (1)External Gain Set; (2)High Speed:140MHz -3dB Bandwidth; (3)1000V/μs Slew Rate; (4)High Full-Power Bandwidths (VOUT = 2Vp-p):140MHz; (5)0.1dB Gain Flatness to 40MHz; (6)Low Differential Gain/Phase Error:0.10%/0.02°; (7)High-Impedance Output Disable.
Diagrams

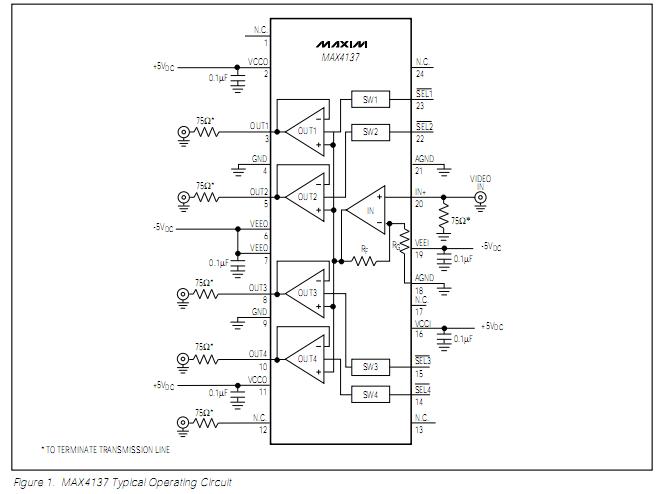

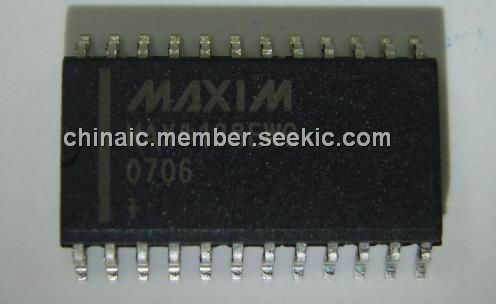

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4138EWG+T |
Maxim Integrated Products |
Video Amplifiers |
Data Sheet |
Negotiable |
|
||||
|
MAX4138EWG-T |
Maxim Integrated Products |
Video Amplifiers |
Data Sheet |
Negotiable |
|
||||
|
MAX4138EWG+ |
Maxim Integrated Products |
Video Amplifiers |
Data Sheet |
Negotiable |
|
||||
