Product Summary
The SKB30/12 is a power bridge rectifier. The typical applications of the SKB30/12 include single phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies, battery charger rectifiers and recommended snubber networ.
Parametrics
SKB30/12 absolute maximum ratings: (1)ID: 6.5A at Ta=45℃, isolated; 15A when Ta=45℃, chassis; (2)IDCL: 6A when Ta=45℃isolated; 13A when Ta=45℃, chassis; (3)IFSM: 370A when Tvj=25℃, 10ms; 320A when Tvj=150℃, 10ms; (4)i2t: 680A2s when Tvj=25℃; 500A2s when Tvj=150℃; (5)VF: 2.2V max when Tvj=25℃, IF=150A; (6)VTO: 0.85V max when Tvj=150℃; (7)rT: 12mΩ when Tvj=150℃; (8)IRD: 300μA; (9)IRD: 5mA; (10)trr: 25μs when Tvj=25℃; (11)fG: 2000Hz; (12)Rth(j-a): 8.5K/W.
Features
SKB30/12 features: (1)isolated metal case with screw terminal; (2)blocking voltage up to 160V; (3)high surge current; (4)easy chassis mounting; (5)UL recognized.

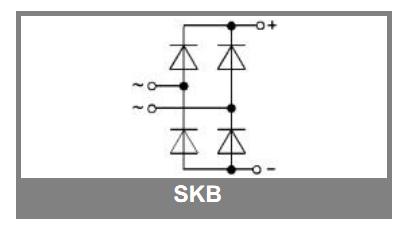

Diagrams
 |
