Product Summary

The MN3005 is a 4096-stage long delay BBD, 8 times longer than 512-stage BBD manufactured by using a P-channel low noise silicon gate process. The applications of the MN3005 include: (1)Reverberation and echo effects in echo microphone and stereo equipment; (2)Chorus effect in electronic musical instruments; (3)Variable or fixed delay of analog signals; (4)Telephone time compression and delay line for voice communication systems, etc.

Parametrics

MN3005 absolute maximum ratings: (1)Terminal voltage VDD, VGG, VCP, VI: -18 to +0.3 V; (2)Output voltage Vo: -18 to +0.3 V; (3)Operating temperature Topr: -20 to +60℃; (4)Storage temperature Tstg: -55 to +125℃.

Features

MN3005 features: (1)1 chip 4096 stage and wide range of variable delay times: 20.48~204.8ms; (2)High S/N in spite of multi-stage and wide dynamic range: S/N ≈ 75dB typ; (3)No insertion loss since the loss occuring in the signal transfer is corrected by the MOS capacity of input and output. Li=0dB; (4)High integration and high reliability by using P channel low noise silicon gate process; (5)Special 8 lead dual-in-line plastic package.

Diagrams

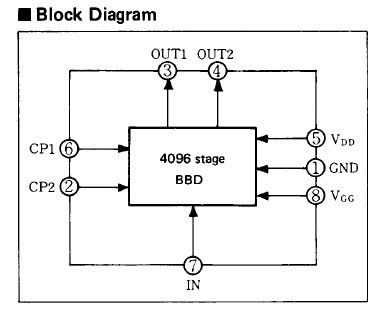

MN3005 block diagram
