Product Summary

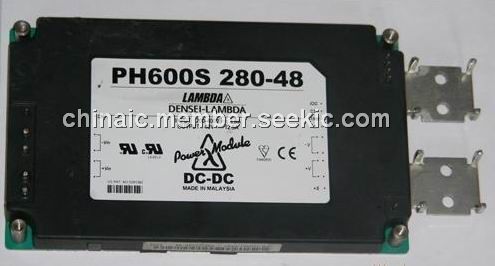

The PH600S280-48 is a simple function, 50 to 600W DC-DC converter.

Parametrics

PH600S280-48 specifications: (1)Input range VDC: 24V nom: 18-36, 48V nom: 36-76V, 110V nom: 82-185V, 280V nom: 200-400V; (2)Line Regulation: 0.4% or 20mV (whichever is greater) over entire input range with constant load; (3)Load Regulation: 0.8% or 40mV (whichever is greater) from no load to full load with constant input line; (4)Series Operation: Possible - Refer to installation manual; (5)Overload Protection: Approximately 105 - 140%, automatic recovery; (6)Remote On/Off: Low = ON, Open = OFF; (7)Operating Temperature Range: Baseplate temperature -20℃ to +85℃ (100℃ on PH300 & PH600); -40℃ start up possible with 30 minute warm up period; (8)Storage Temperature: -40℃ to +85℃ (+100℃ on PH300 & PH600).

Features

PH600S280-48 features: (1)High density; (2)Low component count; (3)Fixed operating frequency; (4)Variety of input voltages.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PH600S280-48
PH600S280-48

TDK-Lambda

DC/DC Converters 600W 48V 12.5A

Data Sheet

0-1: $201.00
1-10: $192.00
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PH60
PH60

Weller

Soldering Tools Weller Solder Stand For W60P/WP Irons

Data Sheet

0-1: $15.54
PH600S
PH600S

Other


Data Sheet

Negotiable
PH600S280-12
PH600S280-12

TDK-Lambda

DC/DC Converters 600W 12V 50A

Data Sheet

0-1: $201.00
1-10: $192.00
PH600S280-24
PH600S280-24

TDK-Lambda

DC/DC Converters 600W 24V 25A

Data Sheet

0-1: $201.00
1-10: $192.00
PH600S280-28
PH600S280-28

TDK-Lambda

DC/DC Converters 600W 28V 21.5A

Data Sheet

0-1: $201.00
1-10: $192.00
PH600S280-3.3
PH600S280-3.3

TDK-Lambda

DC/DC Converters 330W 3.3V 100A

Data Sheet

0-1: $201.00
1-10: $192.00
