Product Summary

The TCA965B is a Window Discriminator. The digital outputs show whether the input voltage is below, within or above this window. The TCA965B is especially suitable as a tracking or compensating controller with a dead band in control engineering and for the selection of DC voltages within a certain tolerance of the required setpoint value in measurement engineering. When the TCA965B is used as a Schmitt trigger, switching frequencies up to a typical value of 50 kHz are possible.

Parametrics

TCA965B absolute maximum ratings: (1)Supply voltage (pin 11), VS: 30V max; (2)Difference in input voltage between pins 6, 7, 8, VI: 15V; (3)Input voltage (pins 6, 7, 8, 9), VI: 30V; (4)Output current (pins 2, 3, 13, 14), IQ: 50 mA; (5)Output voltage (pins 2, 3, 13, 14) independent of VS, VQ: 30V; (6)Voltage on VREF (pin 5), VR: 8 V; (7)Output current of stabilized voltage (pin 10), I10: 10 mA; (8)Inhibit input voltage (pins 4, 12), VIH : 7 V; (9)Junction temperature, Tj: 150℃; (10)Storage temperature, Tstg: -55 to 125℃.

Features

TCA965B features: (1)Two window settings: direct setting of lower and upper edge voltage (window edges); indirect setting by window center voltage and half window width; (2)Adjustable hysteresis; (3)Digital outputs with open collectors for currents up to 50 mA; (4)Adjustable reference voltage VStab.

Diagrams

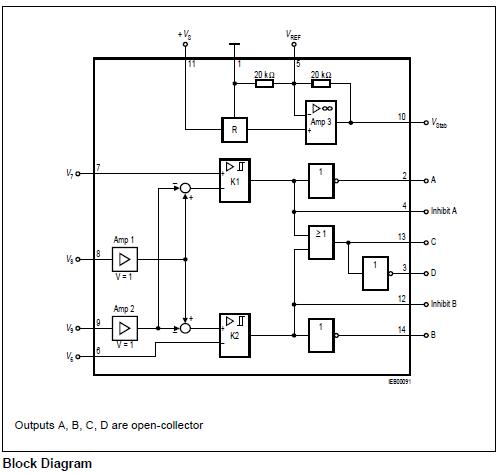

TCA965B block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TCA965B
TCA965B


IC WINDOW DISCRIMINATOR PDIP-14

Data Sheet

0-1000: $1.86
