Product Summary

The UPSD3233B-40U6 is a flash programmable system device with 8032 microcontroller core. The UPSD3233B-40U6 combines a fast 8051- based microcontroller with a flexible memory structure, programmable logic, and a rich peripheral mix including USB, to form an ideal embedded controller. At its core is an industry-standard 8032 MCU operating up to 40MHz. A JTAG serial interface is used for In-System Programming (ISP) in as little as 10 seconds, perfect for manufacturing and lab development. The USB 1.1 low-speed interface has one Control endpoint and two Interrupt endpoints suitable for HID class drivers.

Parametrics

UPSD3233B-40U6 absolute maximum ratings: (1)TSTG Storage Temperature: –65 to 125 ℃; (2)TLEAD Lead Temperature during Soldering (20 seconds max.): 235 ℃; (3)VIO Input and Output Voltage (Q = VOH or Hi-Z): –0.5 to 6.5 V; (4)VCC Supply Voltage: –0.5 to 6.5 V; (5)VPP Device Programmer Supply Voltage: –0.5 to 14.0 V; (6)VESD Electrostatic Discharge Voltage (Human Body Model): –2000 to 2000 V.

Features

UPSD3233B-40U6 features: (1)fast 8-bit 8032 mcu; (2)dual flash memories with memory management; (3)clock, reset, and supply management; (4)programmable logic, general purpose; (5)communication interfaces; (6)A/D converter; (7)timers and interrupts.

Diagrams

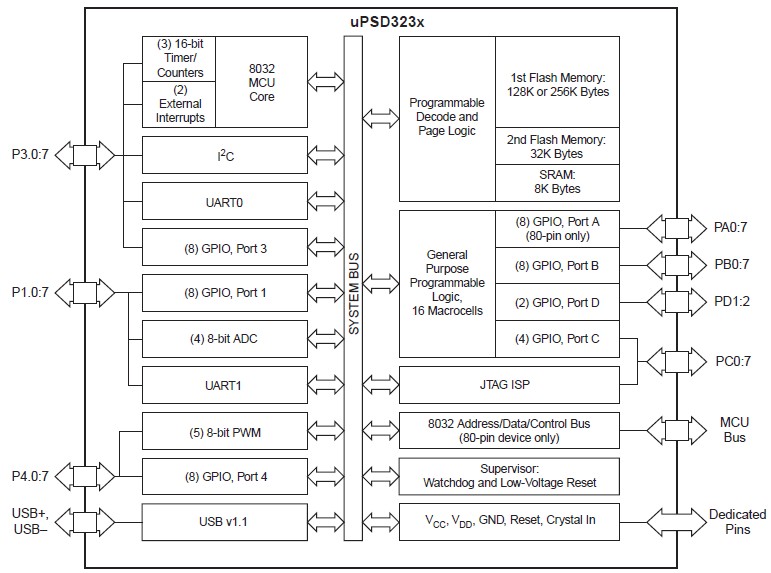

UPSD3233B-40U6 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UPSD3233B-40U6
UPSD3233B-40U6

STMicroelectronics

8-bit Microcontrollers (MCU) 5.0V 1M 40MHz

Data Sheet

Negotiable
