Product Summary

The BD912 is a silicon Epitaxial-Base NPN power transistor mounted in Jedec TO-220 plastic package. It is intented for use in power linear and switching applications. The complementary PNP types are BD910 and BD912 respectively.

Parametrics

BD912 absolute maximum ratings: (1)VCBO Collector-Base Voltage (IE = 0): 100 V; (2)VCEO Collector-Emitter Voltage (IB = 0): 100 V; (3)VEBO Emitter-Base Voltage (IC = 0): 5 V; (4)IE,IC Collector Current: 15 A; (5)IB Base Current: 5 A; (6)Ptot Total Dissipation at Tc ≤ 25 ℃: 90 W; (7)Ts tg Storage Temperature: -65 to 150 ℃; (8)Tj Max. Operating Junction Temperature: 150 ℃.

Features

BD912 features: STMicroelectronics preferred salestypes.

Diagrams

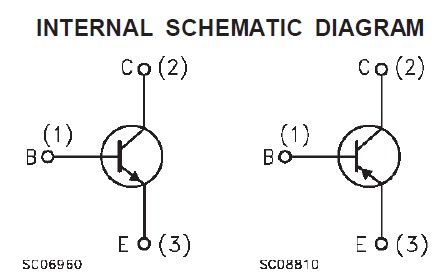

BD912 diagram

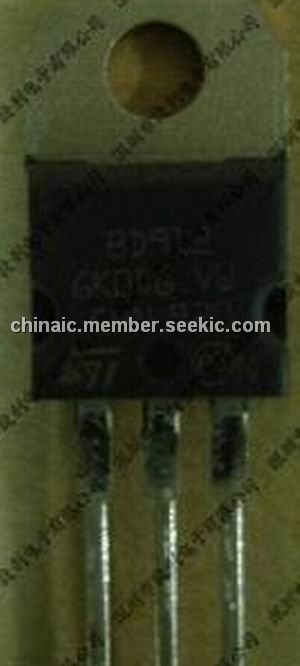

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BD912
BD912

STMicroelectronics

Transistors Bipolar (BJT) PNP General Purpose

Data Sheet

0-1: $0.58
1-10: $0.51
10-100: $0.47
100-250: $0.42
