Product Summary

The SAF-C164CI-LM is a 16-Bit Single-Chip Microcontroller. It is especially suited for cost sensitive applications. The SAF-C164CI-LM combines high CPU performance (up to 12.5 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. The SAF-C164CI-LM also provides clock generation via PLL and various on-chip memory modules such as program ROM or OTP, internal RAM, and extension RAM.

Parametrics

SAF-C164CI-LM absolute maximum ratings: (1)Storage temperature:-65 to 150℃; (2)Junction temperature:-40 to 150℃; (3)Voltage on VDD pins with respect to ground (VSS):-0.5 to 6.5V; (4)Voltage on any pin with respect to ground (VSS):-0.5 to VDD+0.5V; (5)Input current on any pin during overload condition:-10 to 10mA; (6)Absolute sum of all input currents during overload condition:100mA; (7)Power dissipation:1.5W.

Features

SAF-C164CI-LM features: (1)80 ns Instruction Cycle Time at 25 MHz CPU Clock; (2)400 ns Multiplication (16 × 16 bit), 800 ns Division (32 / 16 bit); (3)Enhanced Boolean Bit Manipulation Facilities; (4)Additional Instructions to Support HLL and Operating Systems; (5)Register-Based Design with Multiple Variable Register Banks; (6)Single-Cycle Context Switching Support; (7)16 MBytes Total Linear Address Space for Code and Data; (8)1024 Bytes On-Chip Special Function Register Area; (9)16-Priority-Level Interrupt System with 32 Sources, Sample-Rate down to 40 ns; (10)8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via; (11)Peripheral Event Controller (PEC); (12)2 KBytes On-Chip Internal RAM (IRAM); (13)2 KBytes On-Chip Extension RAM (XRAM); (14)up to 64 KBytes On-Chip Program Mask ROM or OTP Memory.

Diagrams

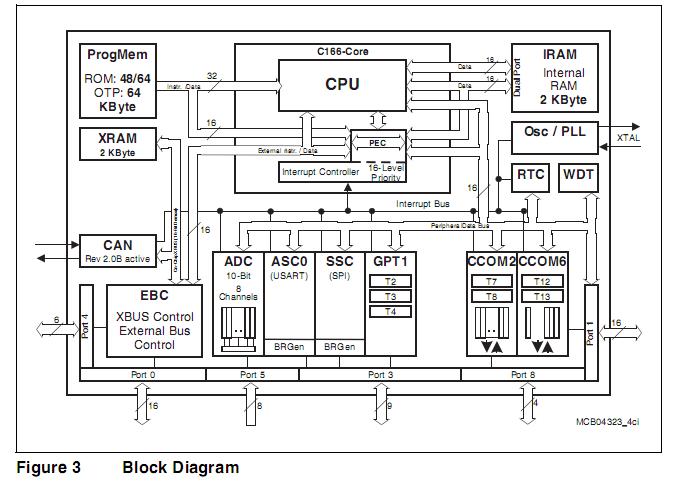

SAF-C164CI-LM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

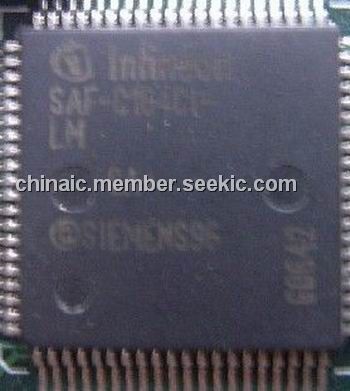

SAF-C164CI-LM CA+
SAF-C164CI-LM CA+

Infineon Technologies

16-bit Microcontrollers (MCU) 16BIT ROM/ROMLESS

Data Sheet

Negotiable
