Product Summary
The TISP2290L is a dual symmetrical transient voltage suppressor. It is designed specifically for telephone equipment protection against lightning and transients induced by a.c. power lines. The TISP2290L will supress voltage transients between terminals A and C, B and C, and A and B. The TISP2290L is fabricated in ion-implanted planar structures to ensure precise and matched breakover control and are virtually transparent to the system in normal operation.
Parametrics
TISP2290L absolute maximum ratings: (1)Non-repetitive peak on-state current, 50 Hz, 0.7 s:10Arms; (2)Initial rate of rise of on-state current:250A/us; (3)Junction temperature:150℃; (4)Operating free - air temperature range:0 to 70℃; (5)Storage temperature range:-40 to +150℃; (6)Lead temperature 1.5 mm from case for 10 s:260℃.
Features
TISP2290L features: (1)Ion-Implanted Breakdown Region Precise and Stable Voltage Low Voltage Overshoot under Surge; (2)Planar Passivated Junctions Low Off-State Current < 10 μA; (3)Rated for International Surge Wave Shapes.

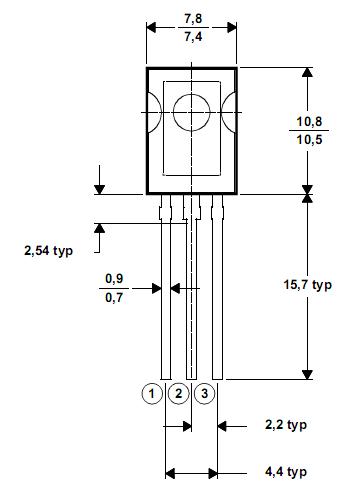

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TISP2290L |
Bourns |
Sidacs |
Data Sheet |
Negotiable |
|
||||
|
TISP2290L-S |
Bourns |
Sidacs PROTECTOR - DUAL BIDIRECTIONAL |
Data Sheet |
Negotiable |
|
||||
