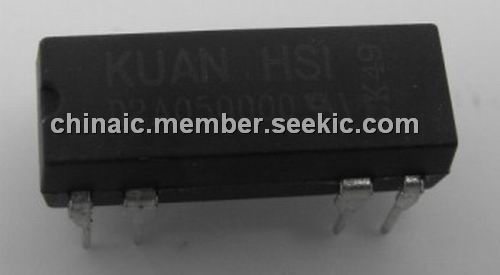

The D2A050000 is a reed relay.

Parametrics

D2A050000 absolute maximum ratings: (1)contact resistance: 100mΩ max; (2)operate time: 0.5ms max; (3)bounce time: 0.5ms max; (4)release time: 0.2ms max; (5)insulation resistance: 1011Ω min; (6)power: 10VA max; (7)switching voltage: 200VDC max; (8)switching current: 0.5A max; (9)carry current: 1.0A max; (10)breakdown voltage: 250VDC min; (11)life expectancy: 108; (12)operating temp: -40 to 85℃; (13)storage temp: -50 to 125℃; (14)resonant frequency: 3.5KHz; (15)vibration: 20g max; (16)minimum permissible load: 100mVDC 10μA.

Features

D2A050000 features: (1)molded epoxy body; (2)DIP type construction with the same terminal pitch as ICs or TTLs simplifies PC board designing. In addition, the high sensitivity allows direct driving by TTL, etc; (3)automatic insertion compatible; (4)sealed construction permits automatic flow soldering and cleaning; (5)diode & magnetic shield are available.

Diagrams

D2A050000 schematic
