Product Summary

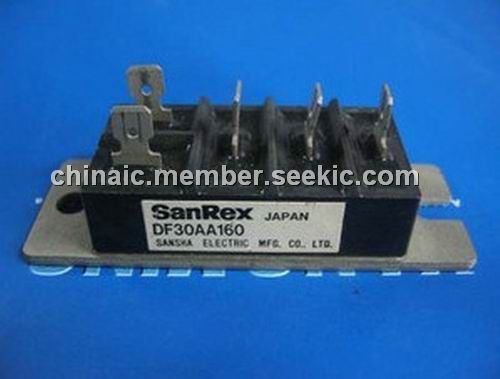

The DF30AA160 is a Power Diode Module. The DF30AA160 is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 30Amp (Tc=117℃) Repetitive peak reverse voltage is up to 1,600V. The DF30AA160 is used in AC-DC Motor Drive/AVR/Switching―for three phase rectification.
Parametrics
DF30AA160 absolute maximum ratings: (1)Output current (D.C.):30A; (2)Surge Forward Current:270/300 A; (3)Junction Temperature:-40 to +150 ℃; (4)Storage Temperature:-40 to +125 ℃; (5)Isolation Breakdown Voltage:2500 V; (6)VRRM Repetitive Peak Reverse Voltage: 1600V; (7)VRSM Non-Repetitive Peak Reverse Voltage: 1700V.
Features
DF30AA160 features: (1)TjMax=150℃; (2)Isolated Mounting Base; (3)High reliability by unique glass passivation; (4)Easy Assemble by the #250 terminal Tab.
