Product Summary

The MAX232CSE is a 5V-powered, multichannel RS-232 driver/receiver. The MAX232CSE line driver/receiver is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications of the MAX232CSE where ±12V is not available.

Parametrics

MAX232CSE absolute maximum ratings: (1)Type: Transceiver; (2)Voltage Supply: 4.5 V ~ 5.5 V; (3)Package / Case 16-SOIC (0.154, 3.90mm Width); (4)Packaging Tape & Reel (TR); (5)Protocol RS232; (6)Lead Free Status Lead Free; (7)RoHS Status RoHS Compliant.

Features

MAX232CSE features: (1)For Low-Voltage, Integrated ESD Applications. +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP. Package); (2)For Low-Cost Applications ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.

Diagrams

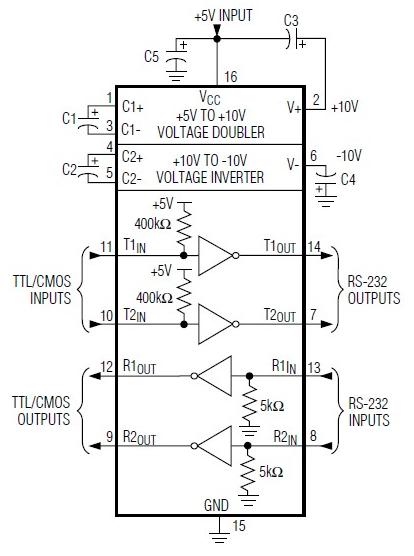

MAX232CSE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX232CSE
MAX232CSE

Maxim Integrated Products

RS-232 Interface IC

Data Sheet

Negotiable
MAX232CSE+
MAX232CSE+

Maxim Integrated Products

RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver

Data Sheet

0-1: $2.32
1-25: $1.55
25-50: $1.12
50-100: $1.12
MAX232CSE+T
MAX232CSE+T

Maxim Integrated Products

RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver

Data Sheet

0-2040: $1.00
2040-2500: $1.00
MAX232CSE-T
MAX232CSE-T

Maxim Integrated Products

RS-232 Interface IC

Data Sheet

Negotiable
