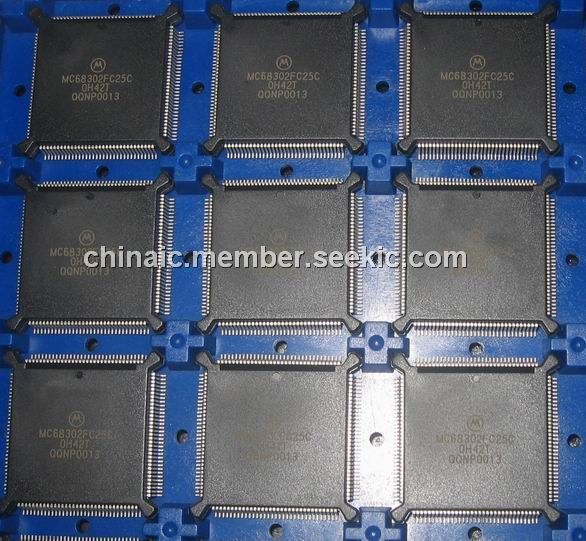

MC68302FC25C

integrated multiprotocol processor, QFP132, 5V, 25MHz, RoHS Non-Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~8.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~8.50

PartNumber:: MC68302FC25C

Brand:: Motorola, Inc - Motorola | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Frank's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-04

From Other Seller

Part Number:MC68302FC25C
US $8.00 - 8.50
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

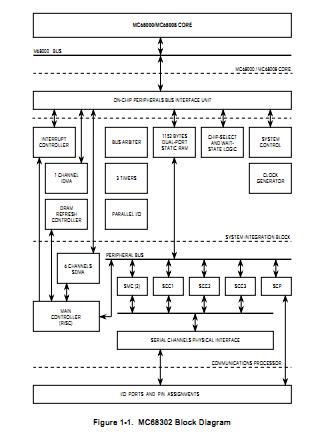

The MC68302FC25C is an integrated multiprotocol processor (IMP). It is a very large-scale integration (VL-SI) device incorporating the main building blocks needed for the design of a wide variety of controllers. The MC68302FC25C is especially suitable to applications in the communications industry. The IMP is the first device to offer the benefits of a closely coupled, industry-standard M68000 microprocessor core and a flexible communications architecture. The MC68302FC25C IMP may be configured to support a number of popular industry interfaces, including those for the Integrated Services Digital Network (ISDN) basic rate and terminal adaptor applications. Con-current operation of different protocols is easily achieved through a combination of architectural and programmable features.

Parametrics

MC68302FC25C absolute maximum ratings: (1)Supply Voltage, VDD: - 0.3 to + 7.0 V; (2)Input Voltage, Vin: - 0.3 to + 7.0 V; (3)Operating Temperature Range, TA: 0 to 70℃; (4)Storage Temperature Range, Tstg: - 55 to + 150℃.

Features

MC68302FC25C features: (1)MC68000/MC68008 Microprocessor Core; (2)Efficient architecture involves a separate RISC processor for handling communications; (3)Three Serial Communications Controllers (SCCs); (4)Support for HDLC/SDLC, Bisync, UART, DDCMP, and Totally Transparent protocols; (5)Two Serial Management Controllers (SMCs) for IDL and GCI Channel; (6)Available at 16, 20, 25, and 33 MHz in three different Thin Quad Flat Pack Packages; (7)Strong 3rd Party tools support.
