MC6850

asynchronous communications interface adapter, DIP24, 1.0 Mbps, double buffered, -0.3 to 7.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.30~2.50

PartNumber:: MC6850

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Frank's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-04

From Other Seller

Part Number:MC6850
US $2.30 - 2.50
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

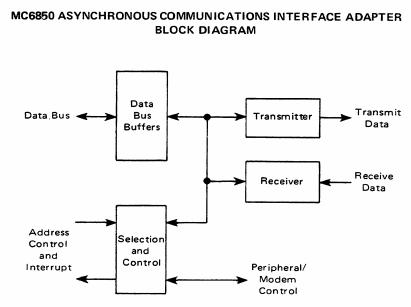

The MC6850 is an asynchronous communications interface adapter. It provides the data formatting and control to interface serial asynchronous data communications information to bus organized systems such as the MC6800 microprocessing unit. The bus interafce of the MC6850 includes select, enable, read/write, interrupt and bus interface logic to allow data transfer over an 8-bit bidirectional data bus.

Parametrics

MC6850 absolute maximum ratings: (1)supply voltage, VCC: -0.3 to 7.0V; (2)input voltage, Vin: -0.3 to 7.0V; (3)operating temperature range, TA: 0 to 70℃; (4)storage temperature range, Tstg: -55 to 150℃.

Features

MC6850 features: (1)8- and 9-bit transmission; (2)optional even and odd parity; (3)parity, overrun and framing error checking; (4)programmable control register; (5)optional +1, +16, and +64 clock modes; (6)up to 1.0 Mbps transmission; (7)false start bit deletion; (8)peripheral/modem control functions; (9)double buffered; (10)one- or two-stop bit operation.
