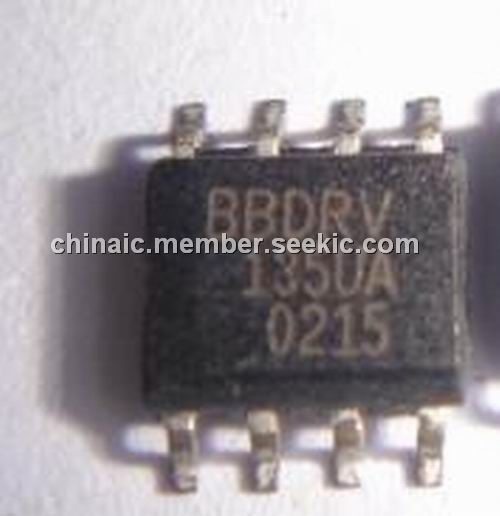

Product Summary

The DRV135UA is a differential output amplifier that converts a single-ended input to a balanced output pair. The balanced audio driver consists of high performance op amps with on-chip precision resistors. The DRV135UA is fully specified for high performance audio applications and have excellent ac specifications, including low distortion (0.0005% at 1kHz) and high slew rate (15V/us). The on-chip resistors of the DRV135UA are laser-trimmed for accurate gain and optimum output common-mode rejection. Wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The DRV135UA comes in a space-saving SO-8 surface-mount package.

Parametrics

DRV135UA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 40V; (2)Input Voltage Range: V– to V+; (3)Output Short-Circuit (to ground): Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

DRV135UA features: (1)Balanced output; (2)Low distortion: 0.0005% at f = 1kHz; (3)Wide output swing: 17Vrms into 600W; (4)High capacitive load drive; (5)High slew rate: 15V/us; (6)Wide supply range: ±4.5V to ±18V; (7)Low quiescent current: ±5.2mA; (8)8-Pin DIP, SO-8, and sol-16 packages; (9)Companion to audio differentialine receivers: INA134 and INA137; (10)Improved replacement foR SSM2142.

Diagrams

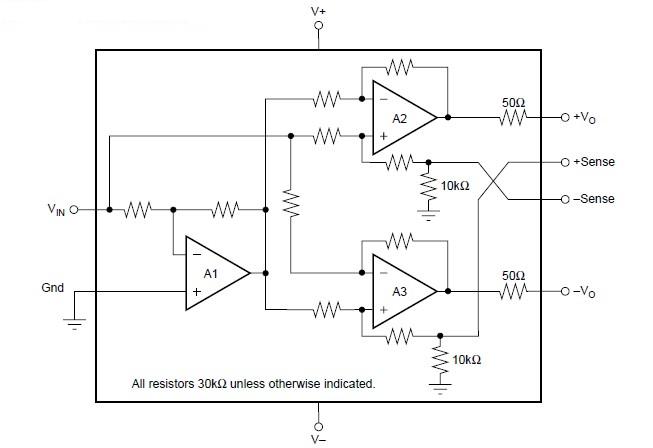

DRV135UA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DRV135UA
DRV135UA

Texas Instruments

Audio Amplifiers AUDIO LINE DRIVERS

Data Sheet

0-1: $3.47
1-25: $3.17
25-100: $2.54
100-250: $2.21
DRV135UA/2K5
DRV135UA/2K5

Texas Instruments

Audio Amplifiers Audio Balanced Line Drivers

Data Sheet

0-1975: $1.48
1975-2000: $1.46
2000-2500: $1.46
DRV135UAG4
DRV135UAG4

Texas Instruments

Audio Amplifiers AUDIO LINE DRIVERS

Data Sheet

0-1: $2.77
1-25: $2.54
25-100: $1.96
100-250: $1.87
DRV135UA/2K5E4
DRV135UA/2K5E4

Texas Instruments

Audio Amplifiers Audio Balanced Line Drivers

Data Sheet

0-1975: $1.48
1975-2000: $1.46
2000-2500: $1.46
