Product Summary

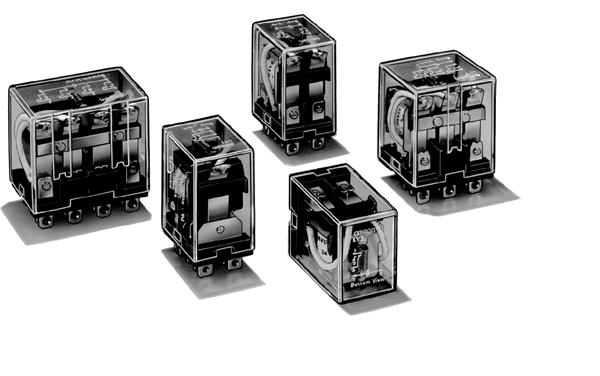

The LY2NJ-220 is a general purpose relay.

Parametrics

LY2NJ-220 general specifications: (1)Contact resistance:50 mΩ max.; (2)Operate time:25 ms max.; (3)Release time:25 ms max.; (4)Insulation resistance:100 MΩ min. (at 500 VDC).

Features

LY2NJ-220 features: (1)Arc barrier equipped; (2)High dielectric strength (2,000 VAC); (3)Long dependable service life assured by Ag-Alloy contacts; (4)Choose models with single or bifurcated contacts, LED indicator, diode surge suppression, push-to-test button, or RC circuit; (5)UL, CSA, TUV, and CE approvals on all standard LY Relay Part Numbers.

Diagrams

LY2NJ-220 package dimensions

LY2N-AC200/220
LY2N-AC200/220
